200-09 HARLEY JD FRONT FORK LOWER LEGS. 1909-1929 SINGLE & TWIN

Competition Distributing Inc.

$114.90
SKU: 200-09

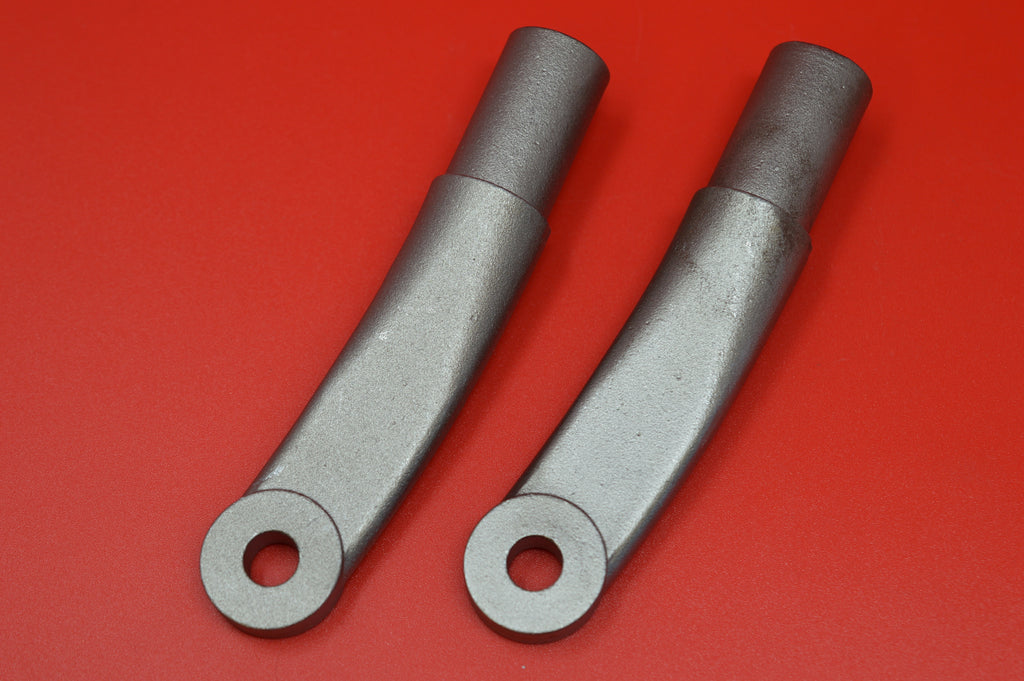

Set of Reproduction Front Spring Fork Lower Legs.

Fits 1909 - 1929 Harley Davidson JD Single & Twin Front Ends.

(NO MACHINING REQUIRED)

Axle Hole is 3/8 and can be enlarged to fit your axle.

PERFECT REPRODUCTION.

Made in the USA with US Steel

**ASSEMBLY NOTE**   These are NOT a press fit.  They should be loose in the tubes. We use 45% Silver Solider Tape to attach these to the for tubes.  There are different thicknesses of this tape. We use the .015" thick tape.  Wrap it around the casting, and insert it into the fork tube.  Lock everything down in your jig so nothing can move and then heat it up.  Make sure you get enough heat on the castings so that you get good capillary action.  Be sure to drill/pin through each tube/casting (dutchman stake) to finish the process.



 McMaster-Carr Sells this Silver Solider Tape/Ribbon Part# 7759A12


50%
Ag
20%
Cu
28%
Zn
2%
Ni

1220° to 1305° Flux Required 1" Width 0.015"
Thick
Brass, Bronze, Carbide, Copper, Steel 13"
Length
7759A12
